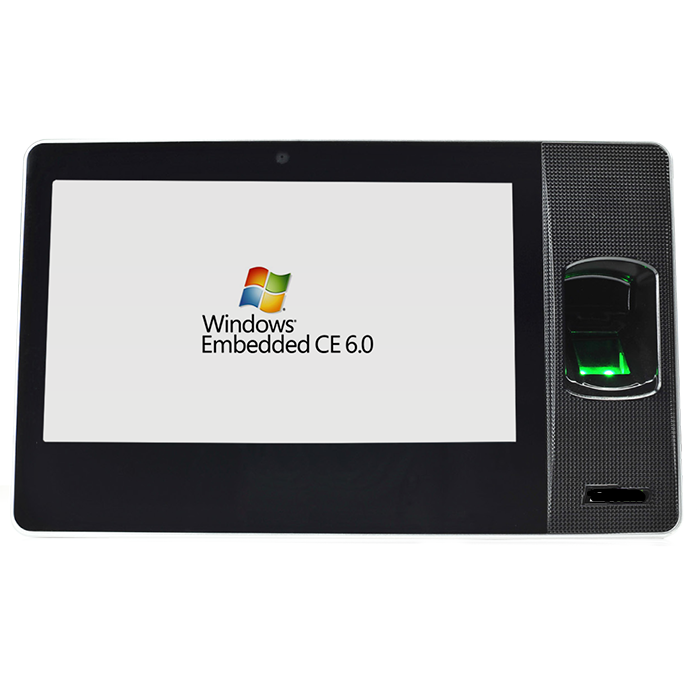

BioPad-CE6 053

BioPad-CE6


Biopad is a powerful, flexible time management terminal using the Windows CE6 operating system and including an integrated fingerprint reader. The BioPad ships with a standard time and attendance application, but an SDK can be provided allowing design and installation of custom applications. Based on a 640 MGHz processor, the platform allows for future updating as new capabilities are required. Communication interfaces such as Ethernet, USB Host, USB Client and Wi-Fi allow for versatile connectivity virtually anywhere.




Features

7 in. TFT color display with capacitive touch screen
 624 MHz CPU with 2GB RAM
 256 MB NAND ROM flash memory
 Supports standard Wi-Fi
 0.3 MP camera
 2000 mAh backup battery
 Relay for access control



Capacity
  Template:
Max. Users:
Fingerprint Log:
Recorded Images:
Verification Modes:
6,000 (1:N)
10,000 transactions
200,000
8,000
PWD / PIN / FP / RF
  Display


800 x 480 Pixel, LCD Capacitive Touch Screen
  Camera


0.3 MP

Fingerprint Sensor



ZK Optic Sensor
  Core Board
  CPU:
Operating System:
RAM:
Flash Memory:
624 MHz
Windows CE6
1 GB
256 MB; SD card slot
  Communication
  Data:



Ethernet, Wi-Fi, USB Host and Client Optional: ID / MF
  Power
  Power Supply: 12V DC, 3A
  Environment
  Operating Temperature:
Humidity:
32° F to 113° F ( 0° C to 45° C)
20% to 80%
  Supported Options
    125KHz Prox, 13.56MHz Mifare
  Dimensions
  Width:
Hight:
Depth:
Weight:
8.7 in. (22 cm)
5.3 in. (13.4 cm)
2.0 in. (5.1 cm)
1.43 lbs (650g)
