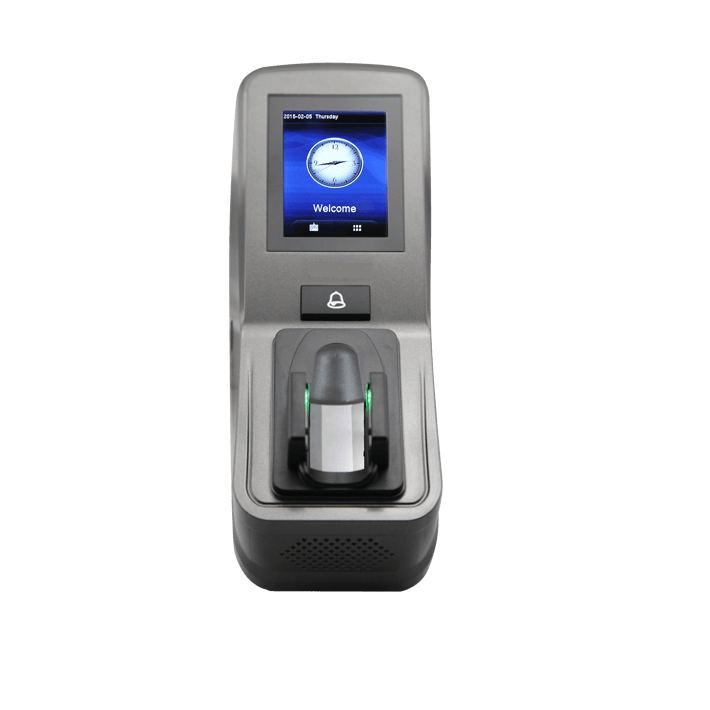

V350 is an IP-based finger vein terminal used for access control. It can support to work in standalone mode, or connect to third party access control panel by using wiegand interface.
With independent patent vein recognition technology, V350 has many advantages. It can identify fake finger; not affected by external light and the fingerprint wear. It can also effectively identify finger desquamate.
• Work in standalone mode or TCP/IP connected
• Reliable, durable and highly accurate authentication
• 2.8 inch capacitive screen
• Full access control function
Send Inquiry NOW!
Technical Specifications
|
|
Core board
|
ZMM220
|
|
CPU
|
1.2GMHz
|
|
Communication
|
TCP/IP, RS485
|
|
Vein Capacity
|
1,000
|
|
RF Card
|
EM, Mifare (Optional)
|
|
Authentication
|
Finger vein, Password, card (Optional)
|
|
Auxiliary terminal
|
1 Aux. input
|
|
Wiegand
|
Wiegand in and out
|
|
Display
|
2.8-inch capacitive screen
|
|
Operating Voltage
|
DC 12V 3A
|
|
Operating Temperature
|
-10°C ~ 45°C
|
|
Dimensions
|
232mm×91mm×117mm(length×width×thickness)
|
|
SDK
|
PULL SDK (new firmware)
|
